KEF’s patented Uni-Q driver array
Ci160.2CR in-ceiling speaker features allows sound to disperse more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci160.2CR where other speakers in its class won’t fit.

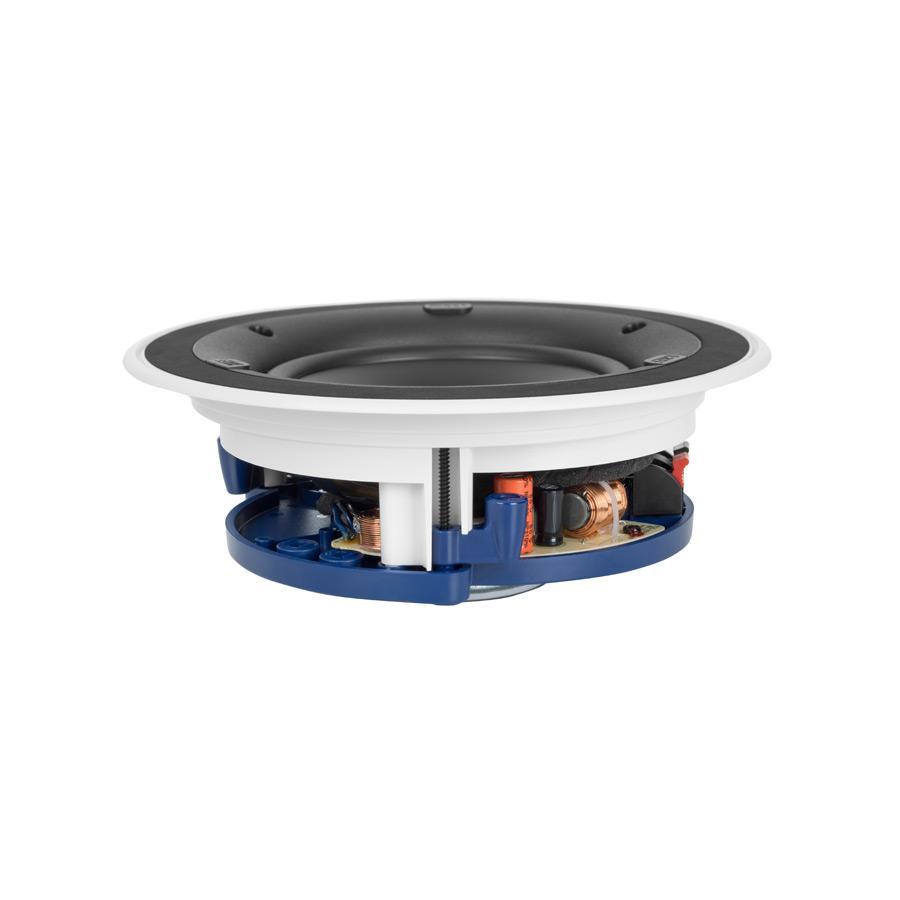

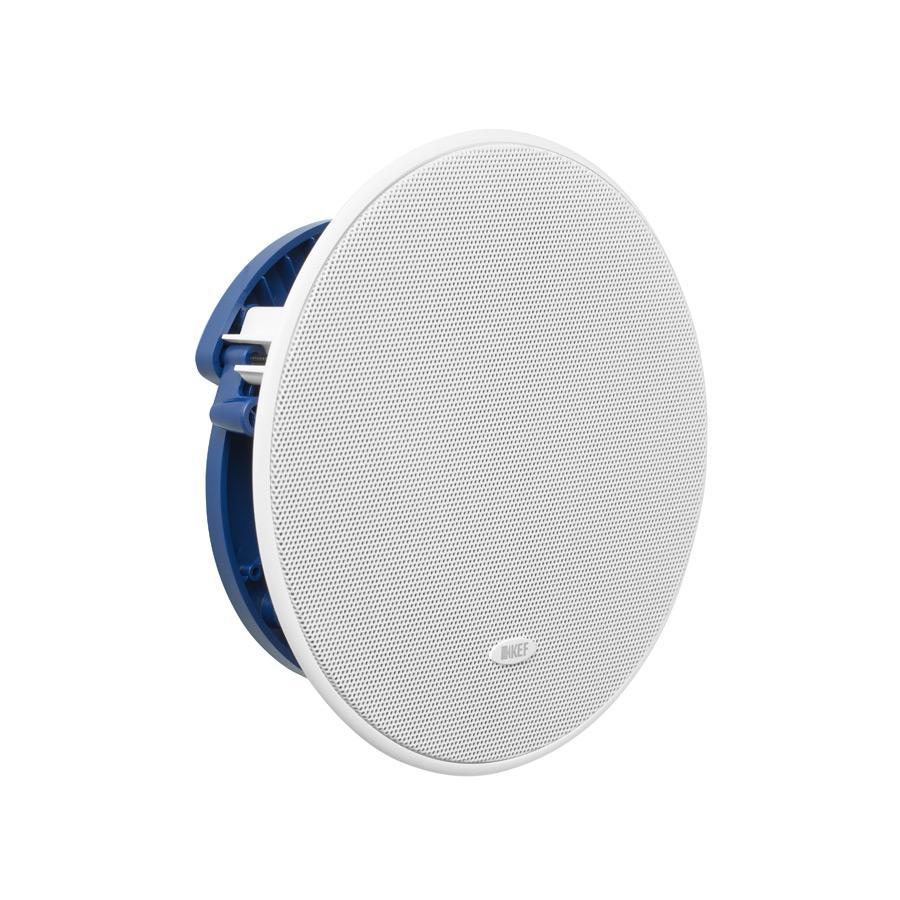

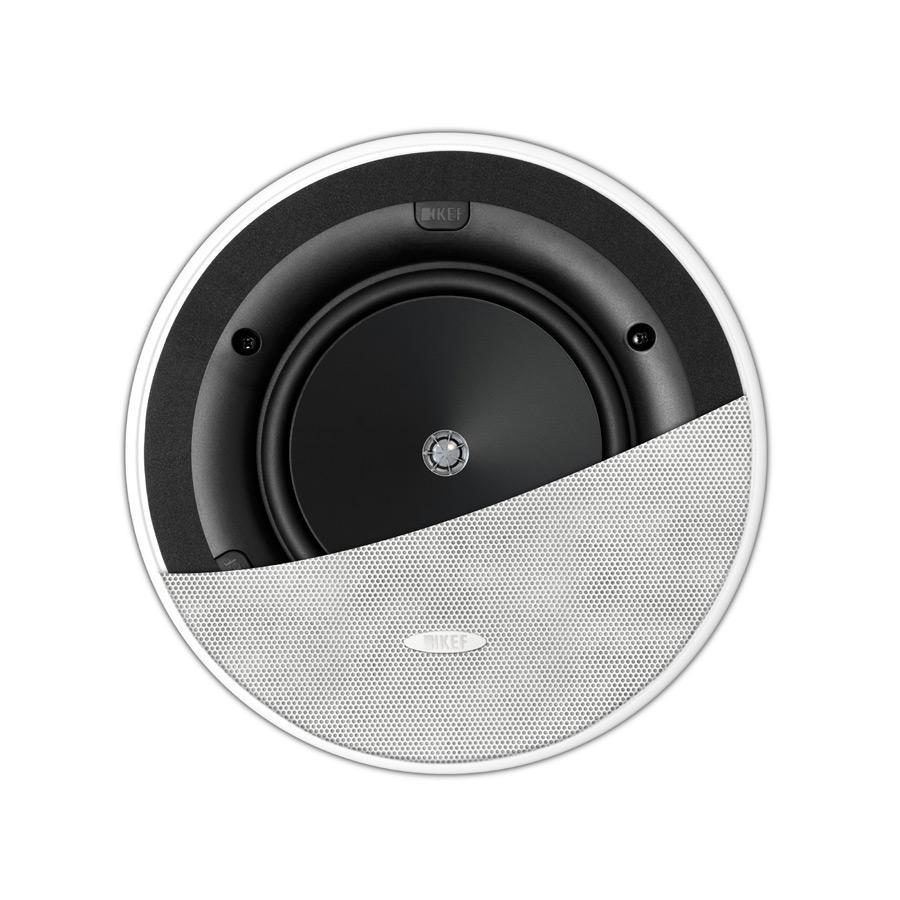

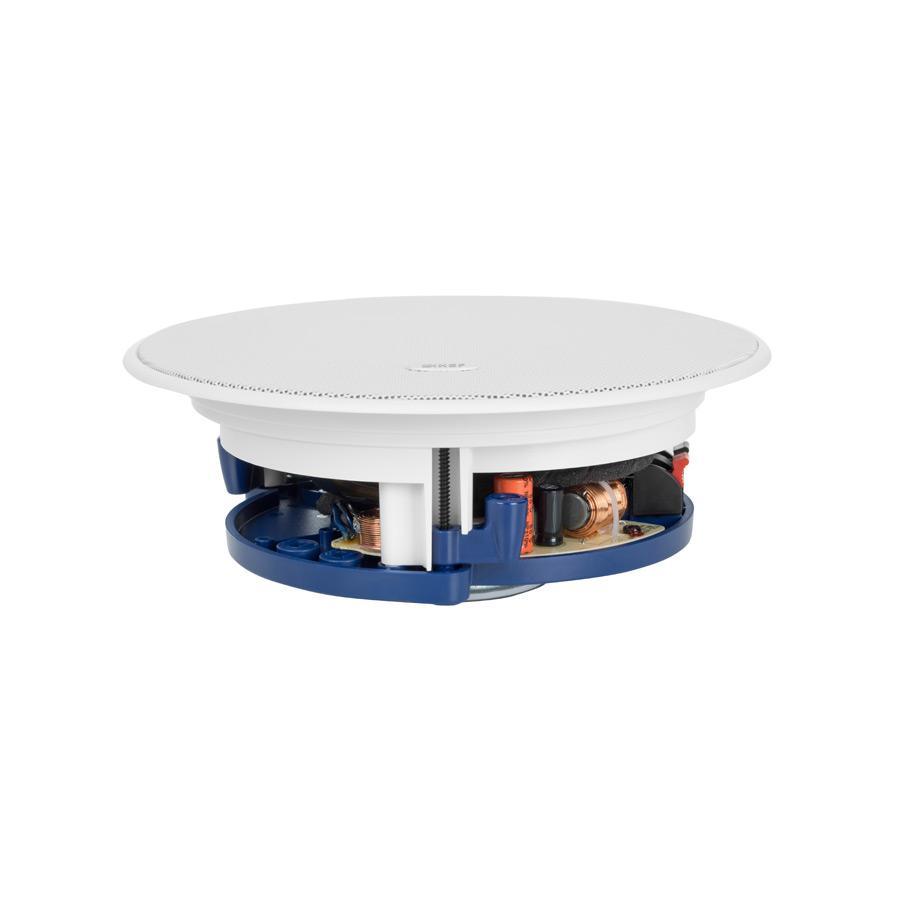

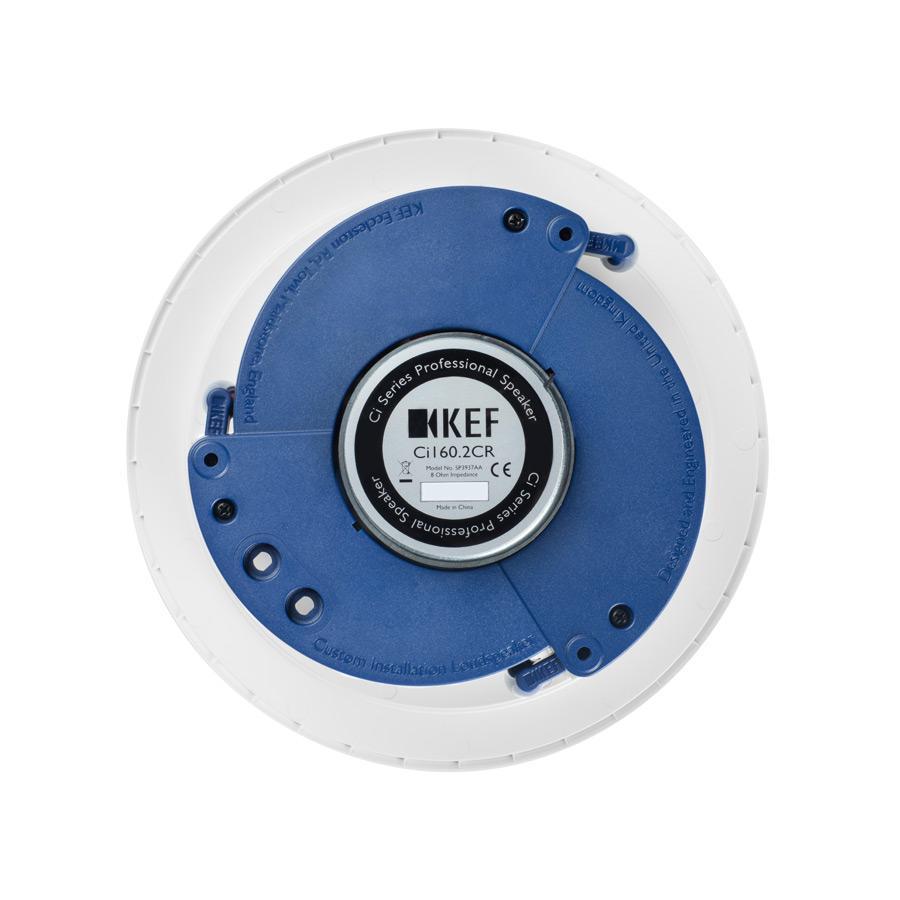

Ci160.2CR
Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room.
Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.
Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.
The Details
FEATURES
UTB™ Ultra-Thin Bezel

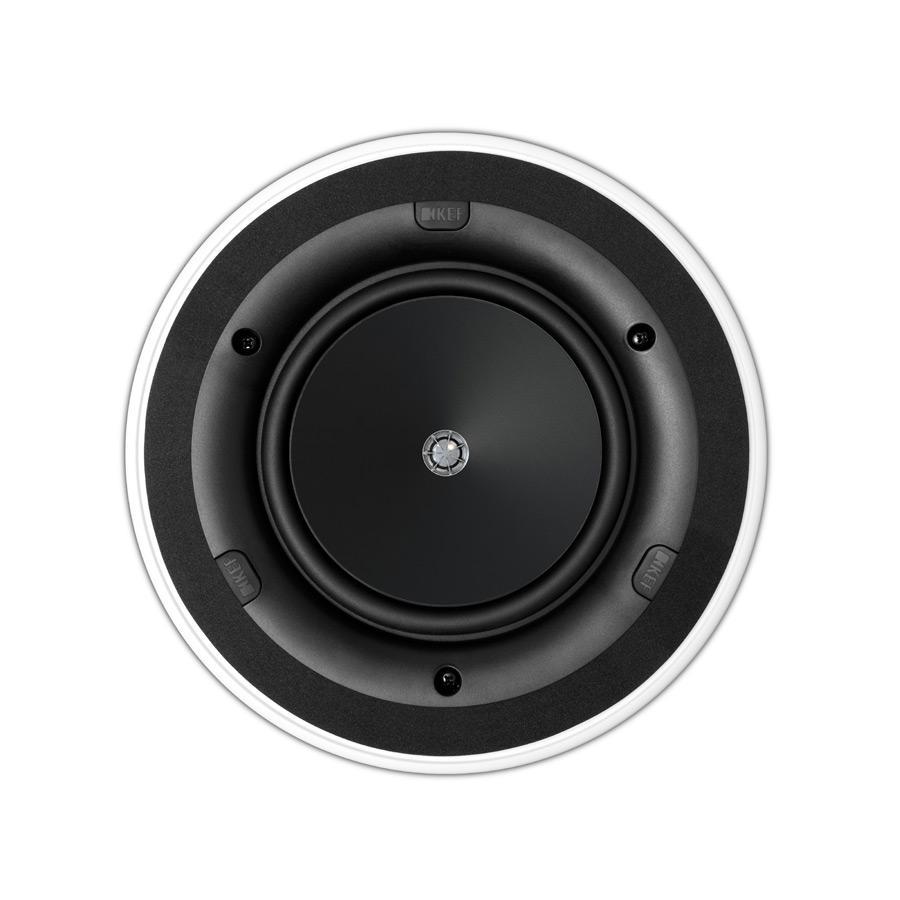

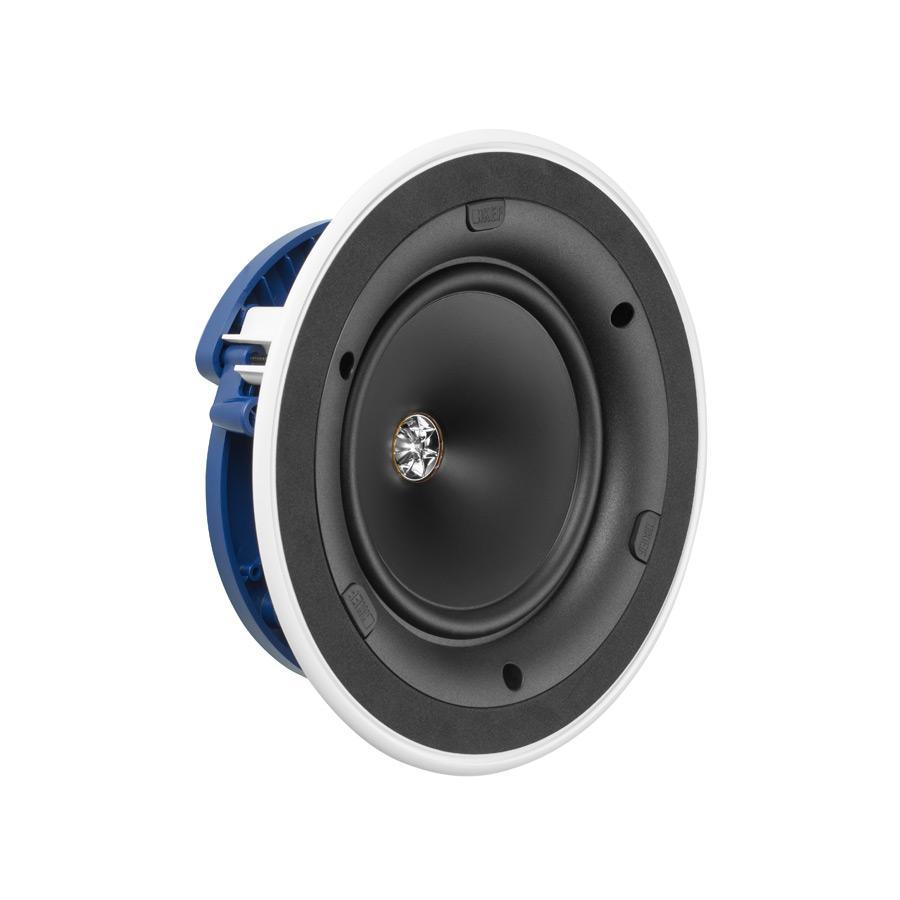

160mm (6.5in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide

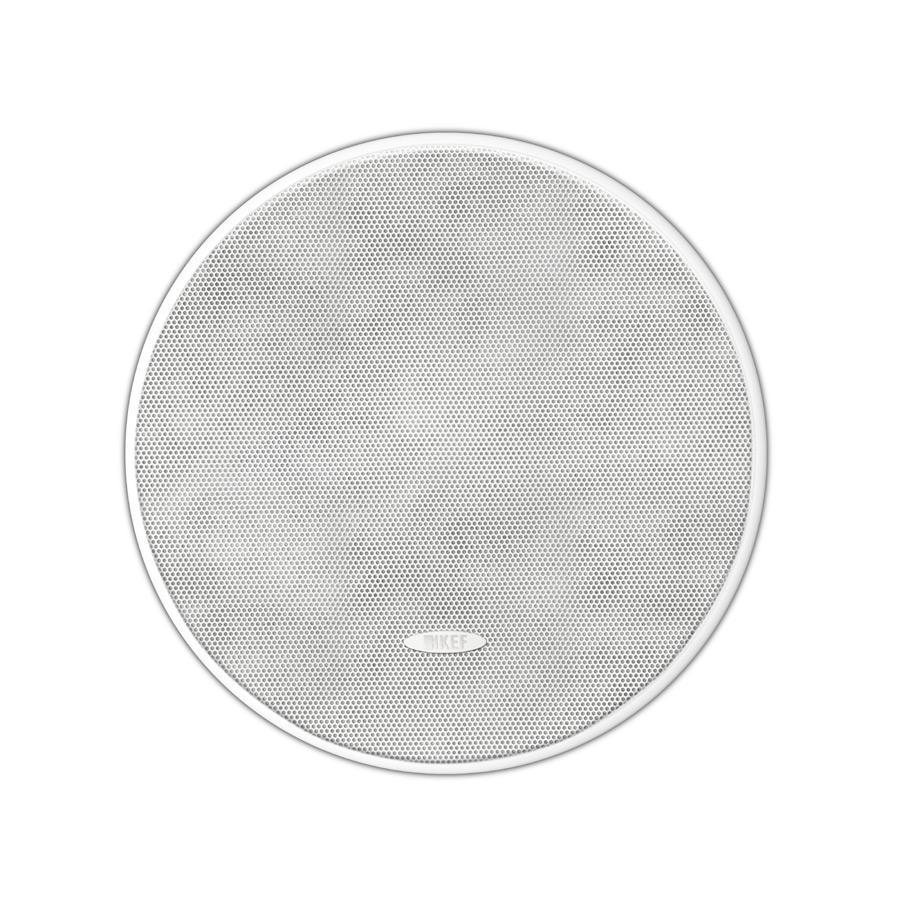

Magnetic grille
Paintable grille and bezel
Weather Resistant
IP64 certified
160mm (6.5in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Magnetic grille
Paintable grille and bezel
Weather Resistant
IP64 certified
SPECIFICATIONS
NOMINALE IMPEDANTIE
8 Ohms
GEVOELIGHEID
89dB (2.83V/ 1m)
FREQUENTIEBEREIK
52Hz - 20kHz (+/-6dB) open-backed
SCHEIDINGSFILTERFREQUENTIES
2.5kHz
DRIVE UNITS
LF: 160mm (6.5in.) Uni-Q
HF: 16mm (0.6in.)
HF: 16mm (0.6in.)
AANBEVOLEN VERSTERKERVERMOGEN
10-100W
UITWENDIGE AFMETINGEN
Diameter: 234.6mm (9.24in.)
Depth: 88.7mm (3.49in.)
Depth: 88.7mm (3.49in.)
AFMETINGEN
Diameter : 196mm (7.71in.)
DIKTE PANEEL
Paneel/plafond dikte (maximaal): 36mm (1.420in.)
Paneel/plafond dikte (minimaal): 6mm (0.240in.)
Paneel/plafond dikte (minimaal): 6mm (0.240in.)
INBOUWDIEPTE GEMETEN VANAF MONTAGEOPPERVLAK
84.5mm (3.33in.)
OPTIONEEL MONTAGEFRAME (ROUGH-IN FRAME)
RIF160R
OPTIONELE BEHUIZING
RNC160R
NETTO GEWICHT
1.4kg (3.1lbs)
AFMETINGEN UNIT
Piece
Please visit our Ci Software Download page for more details.
