HiFi-luidsprekers
REFERENCE 5 Floorstanding Speaker

HiFi-luidsprekers

REFERENCE 5 Floorstanding Speaker

Kleur

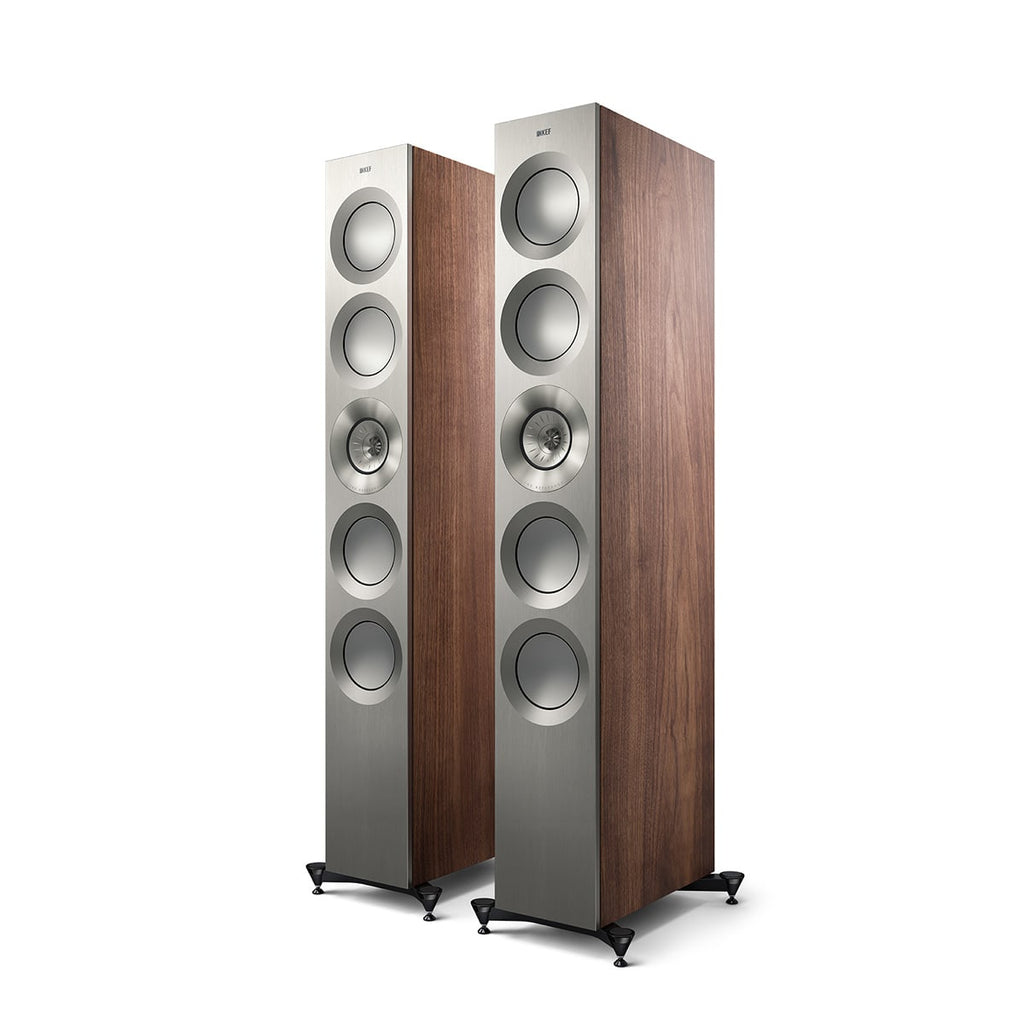

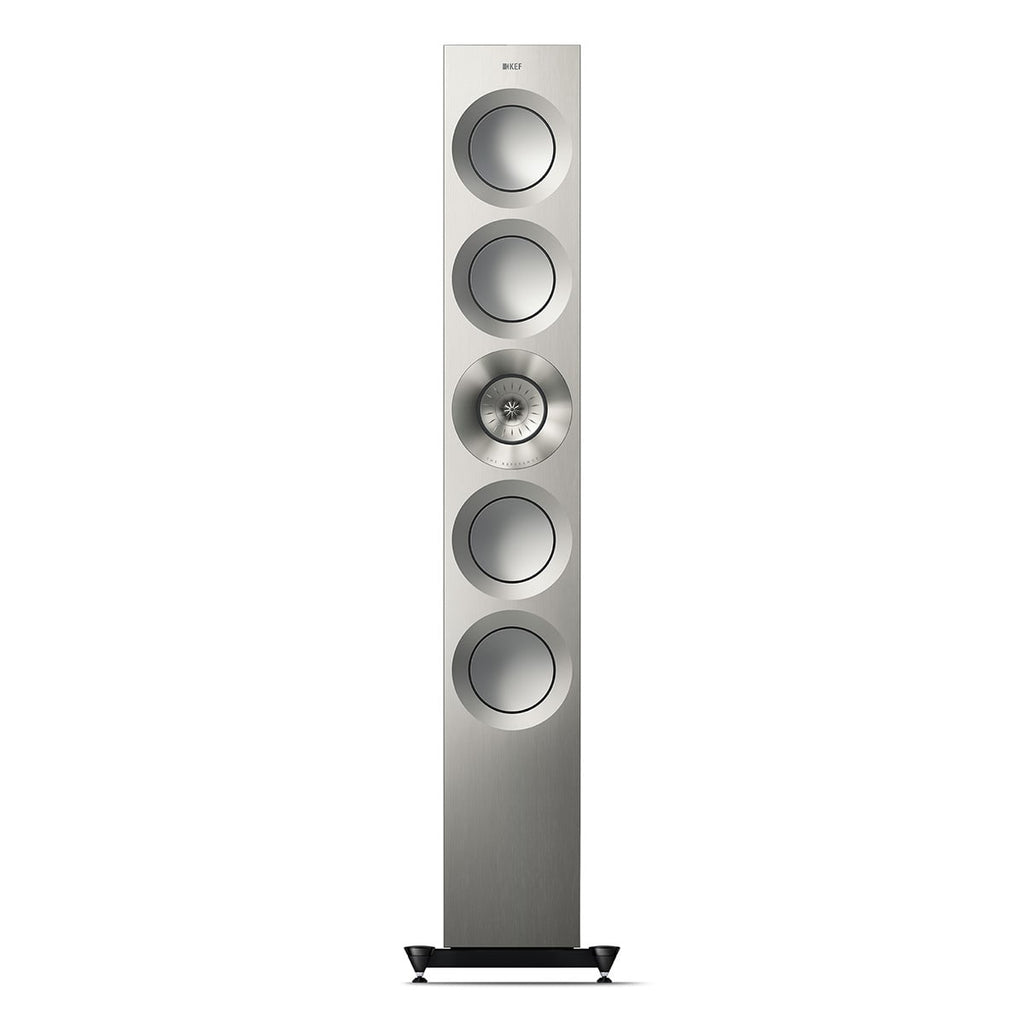

Silver Satin Walnut

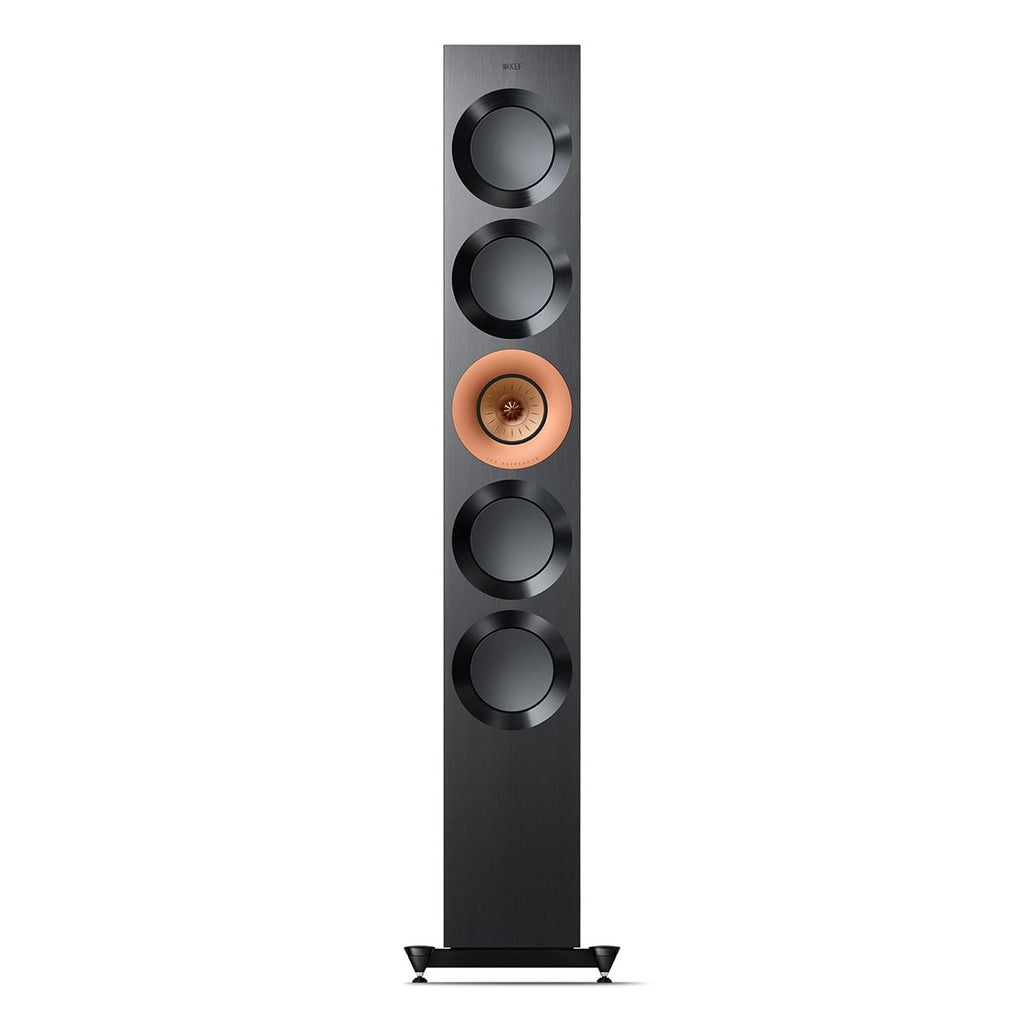

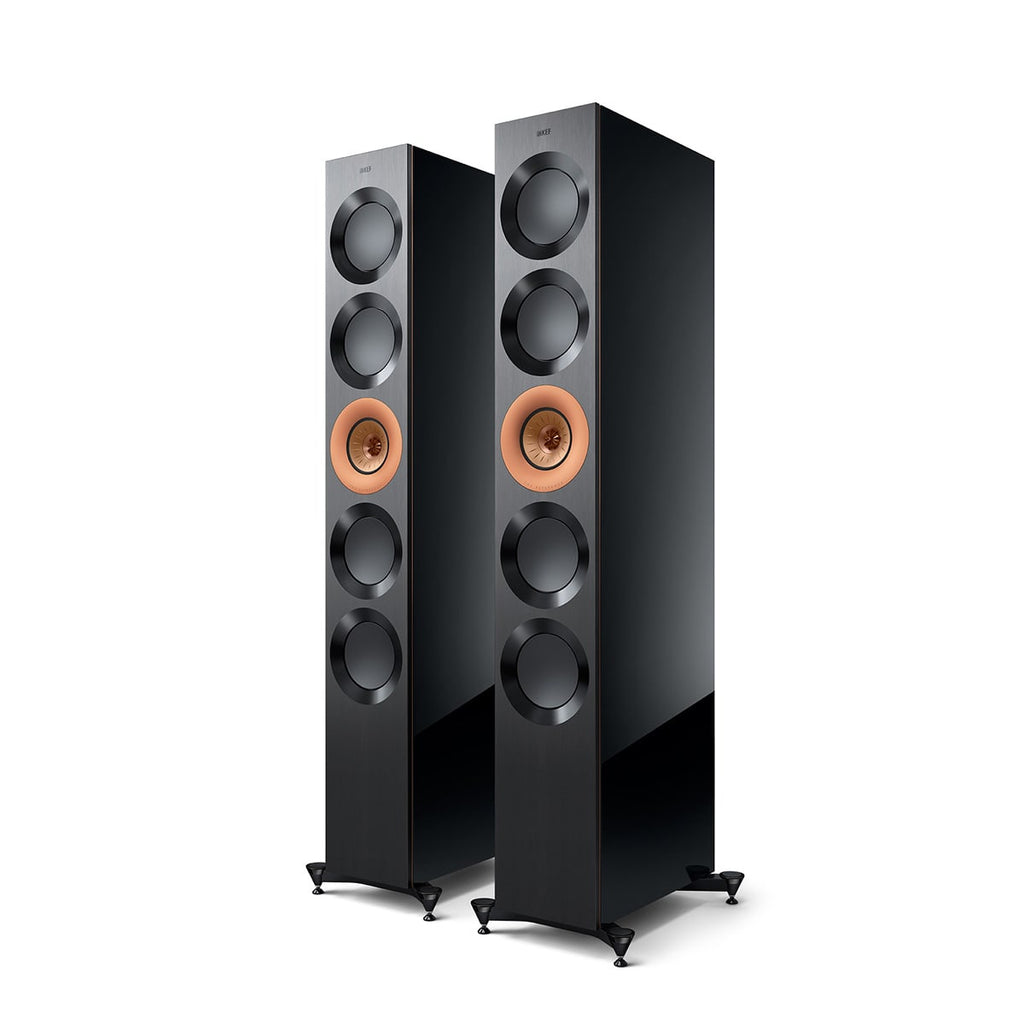

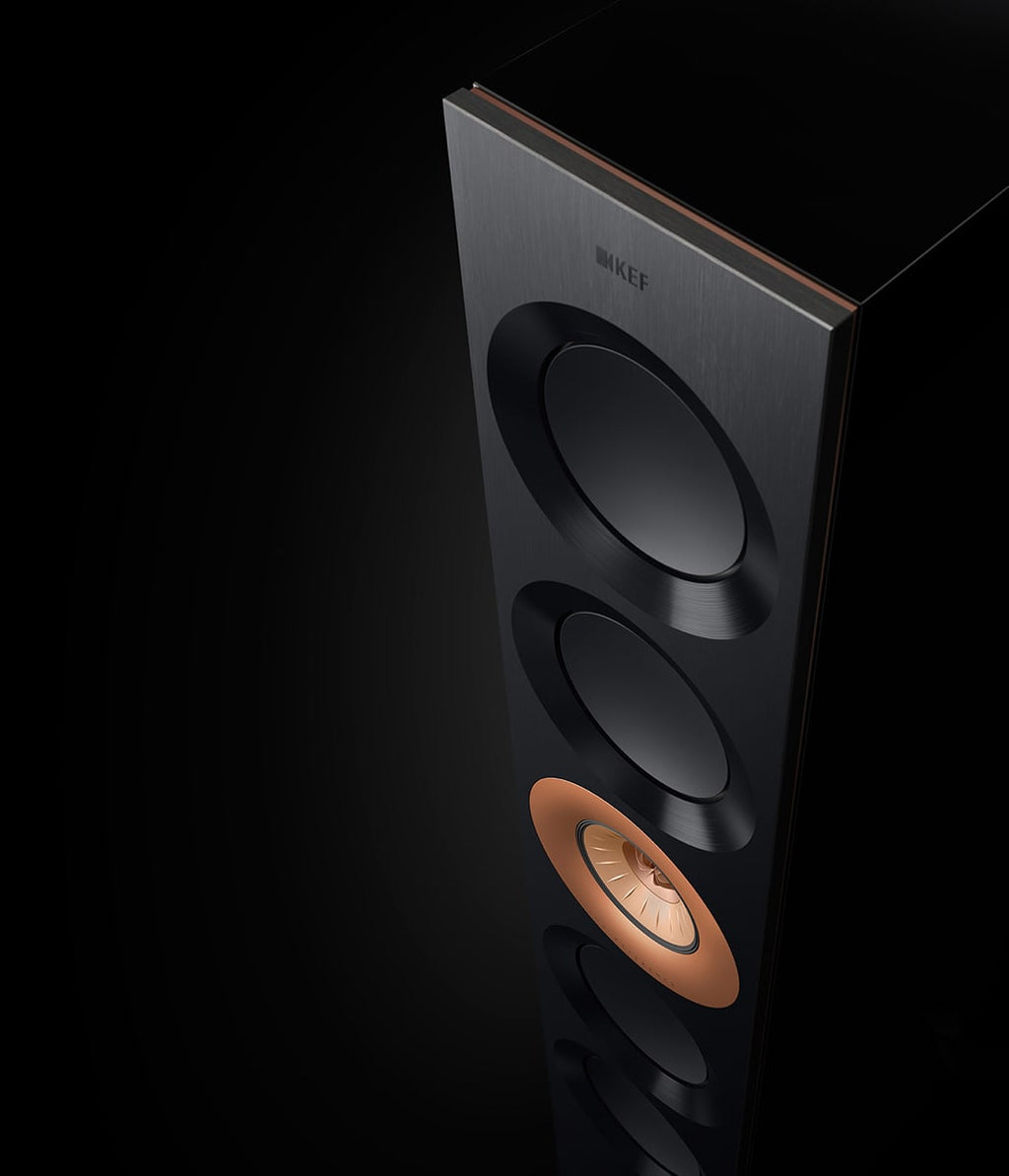

Copper Black Aluminium

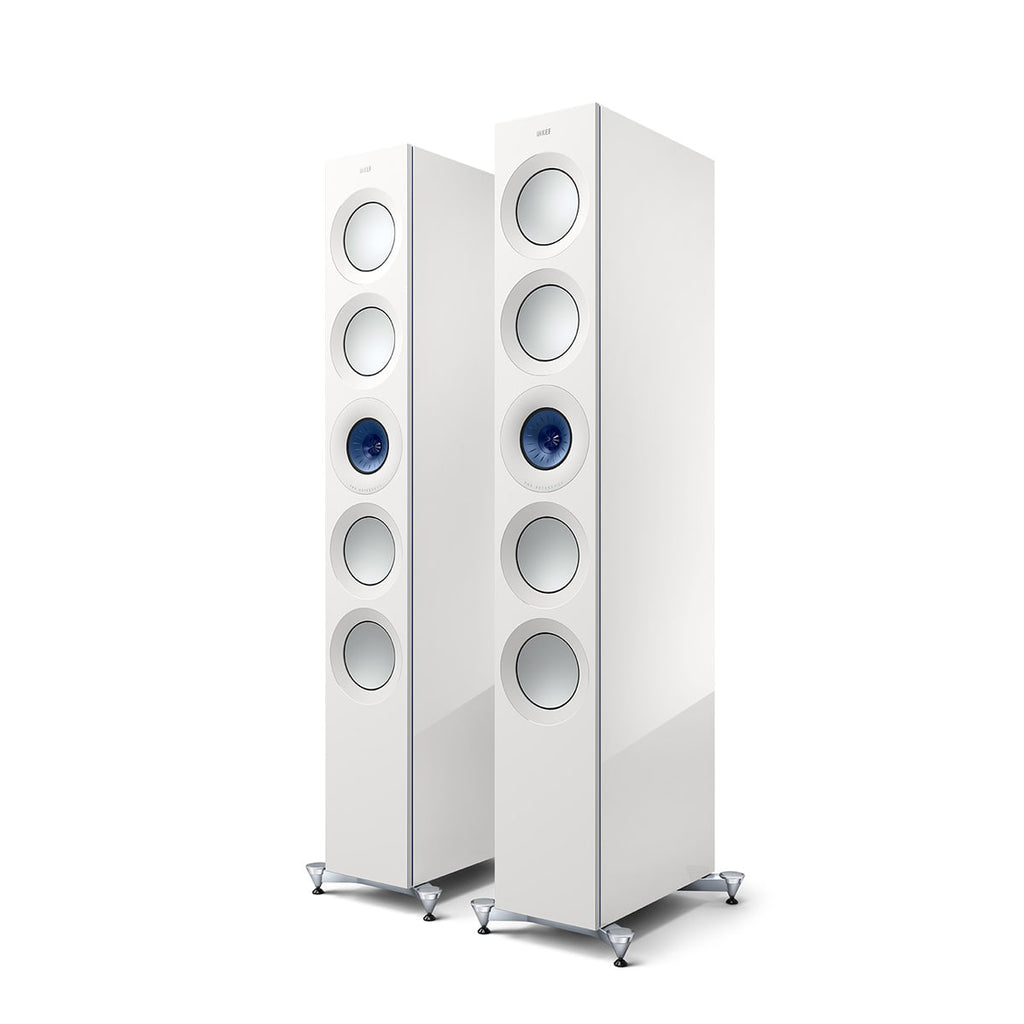

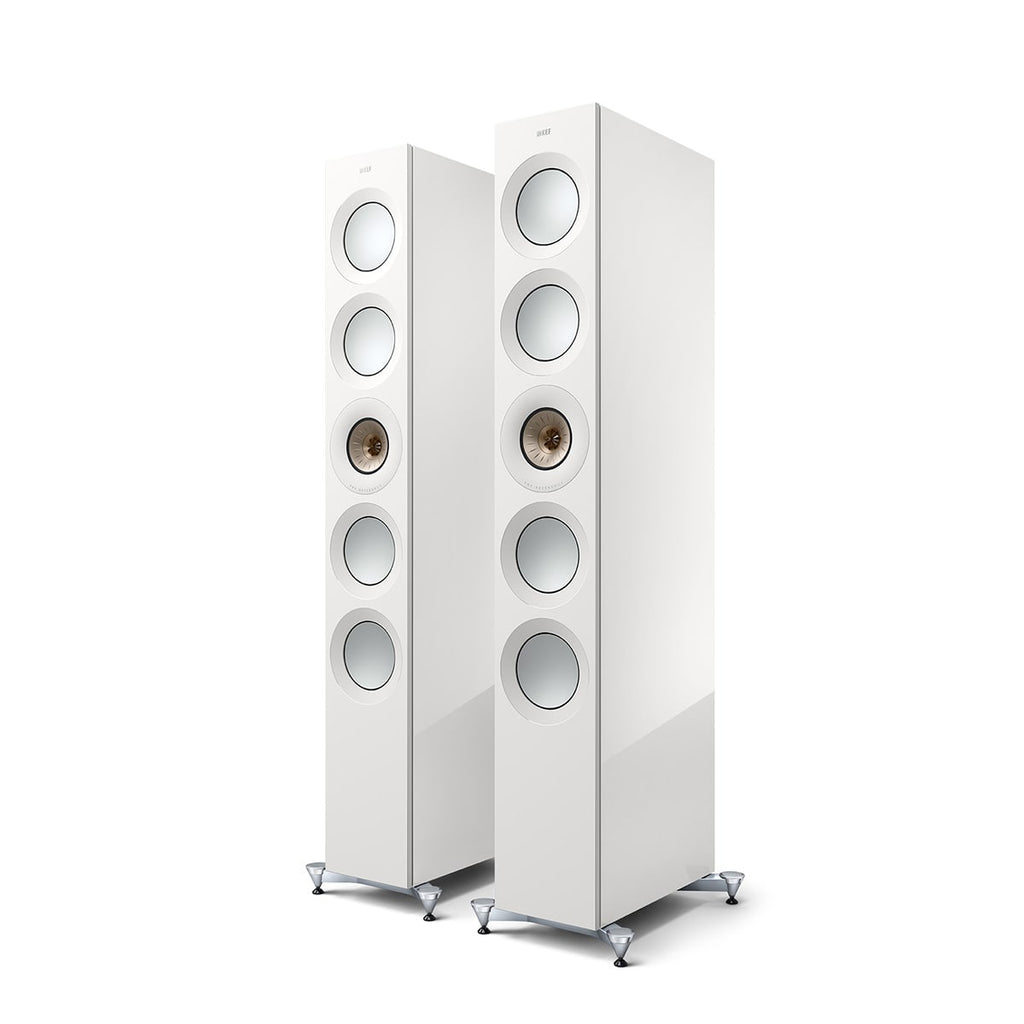

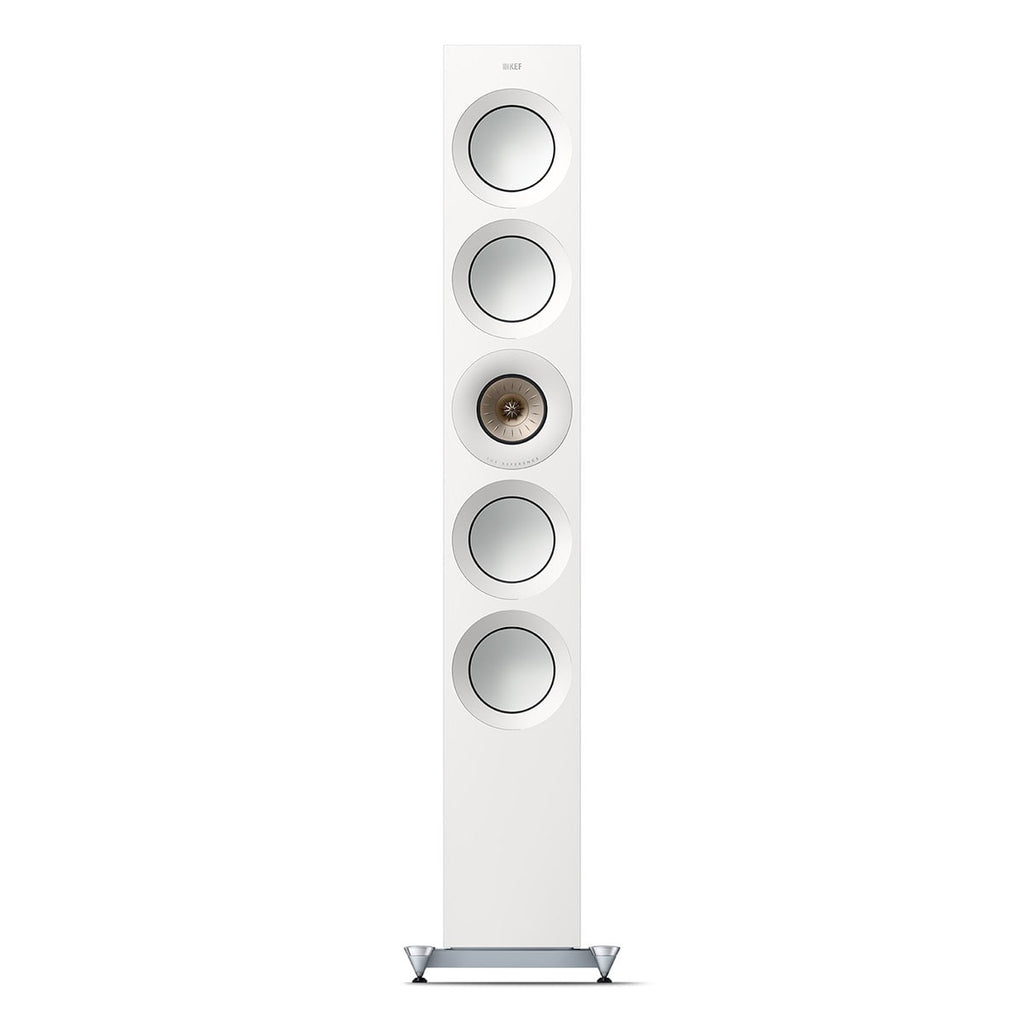

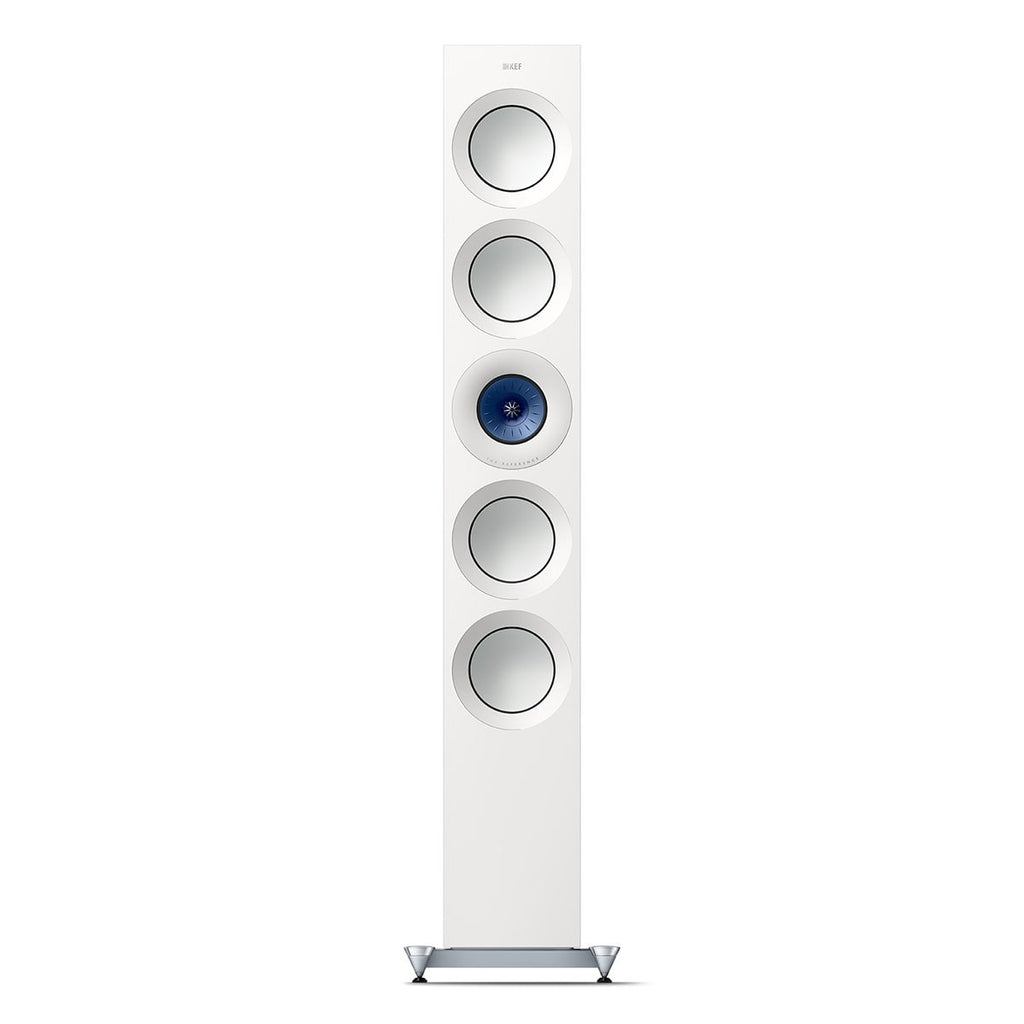

Blue Ice White

Kleur

Flagship three-way floorstander

Zoek je de ultieme geluidsweergave dan illustreert Reference 5 de passie voor innovatie die ten grondslag ligt aan de ontwerpfilosofie van KEF.

Hand-built in Maidstone, UK.

ONTDEK DE THE REFERENCE SERIES

MEER INFORMATIE

VIND EEN WINKEL

Delen op Facebook Twitteren op Twitter Pinnen op Pinterest

REFERENCE 5

Deze drieweg-vloerstaande luidspreker heeft vier krachtige 165 mm (6,5 inch) basdrivers en KEF's nieuwste 125 mm (5 inch) Uni-Q unit met de nieuwe geventileerde 25 mm (1 inch) aluminium dome-tweeter. Het laag wordt met volledige controle en diepte weergegeven en biedt samen met de UNI-Q unit een overweldigend geluidsbeeld.

De Details

SPECIFICATIES

AFWERKINGEN

Silver satin walnut, Copper black aluminium, Blue Ice White, Deep piano black, Satin American walnut, Luxury gloss rosewood

GEWICHT

60.2kg (132.7lbs)

AFMETINGEN (H X B X D)

H x Bx D with grille and terminal :
1350 x 205 x 470 mm (53.1 x 8.0 x 18.5 in. )

H x B x D with grille, terminal & plinth :
1397 x 349 x 470 mm (55 x 13.7 x 18.5 in.)

ONTWERP

Three-way Bass Reflex

AFMETINGEN UNIT

Pair

FREQUENTIEBEREIK

Typical in room bass response: 25Hz (-6dB)
Free Field - Short port: 35Hz - 45kHz (-6dB)
Free Field - Long port: 32Hz - 45kHz (-6dB)

FREQUENTIEBEREIK

40Hz - 35kHz (±3dB)

SCHEIDINGSFILTERFREQUENTIES

350Hz, 2.8kHz

MAXIMALE OUTPUT

116 dB (peak sound pressure level at 1m with pink noise)

VERSTERKER KLASSE

50-400W

GEVOELIGHEID

90dB (2.83V/1m)

HARMONISCHE VERVORMING

2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kH

IMPEDANTIE

8 Ohms (min.3.2 Ohms)

DRIVE-UNITS

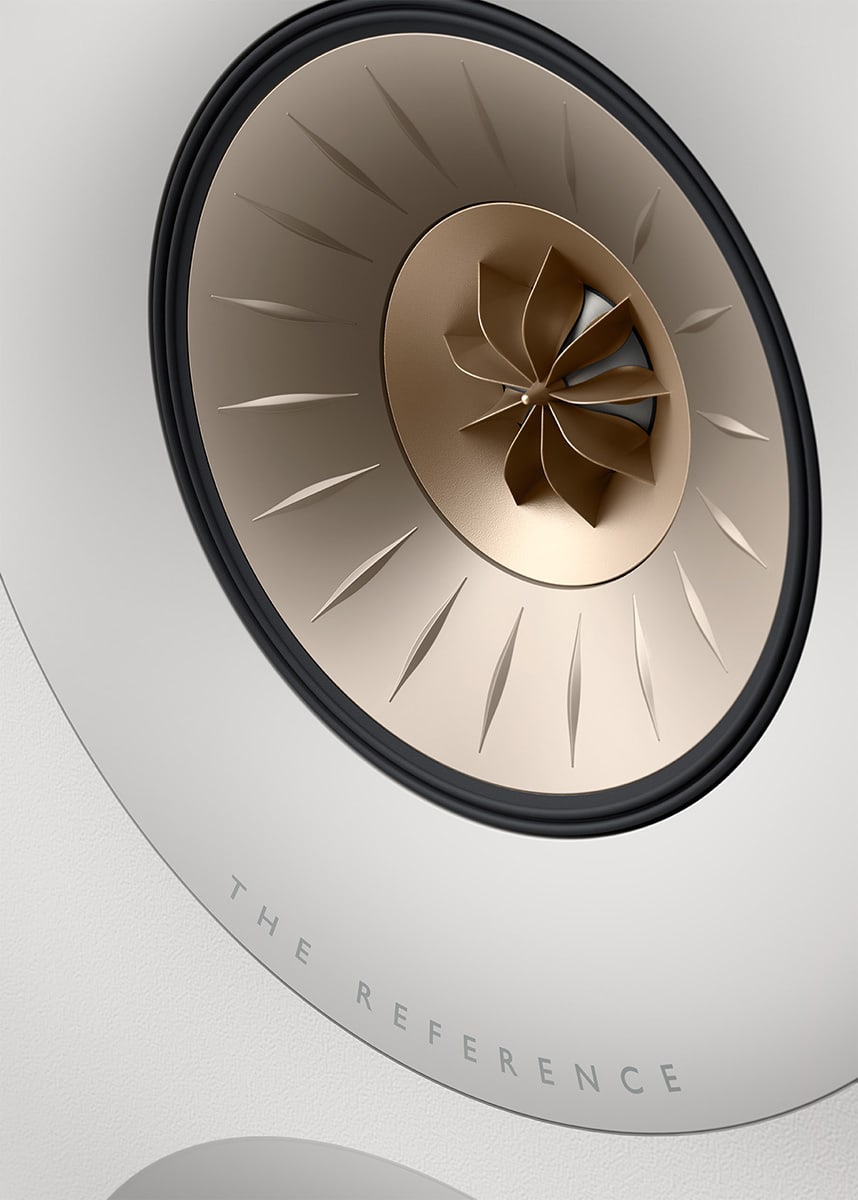

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units:
LF: 4 x165mm (6.5in.) aluminium

CROSSOVER FREQUENCIES

350Hz, 2.8kHz

DOWNLOAD DOCUMENTEN

THE REFERENCE 8b Manual THE REFERENCE Manual THE REFERENCE Information Sheet THE REFERENCE White Paper THE REFERENCE Brochure

KEF behoudt zich het recht voor om, naargelang lopend onderzoek en ontwikkeling, specificaties aan te passen of te wijzigen. E&OE
